Windows Forensics Prefetch

Prefetch is a utility that is intended to improve Windows and application startup performance by loading application data into memory before it is demanded.

Creation: A prefetch file is generated the first time an application is executed from a specific path.

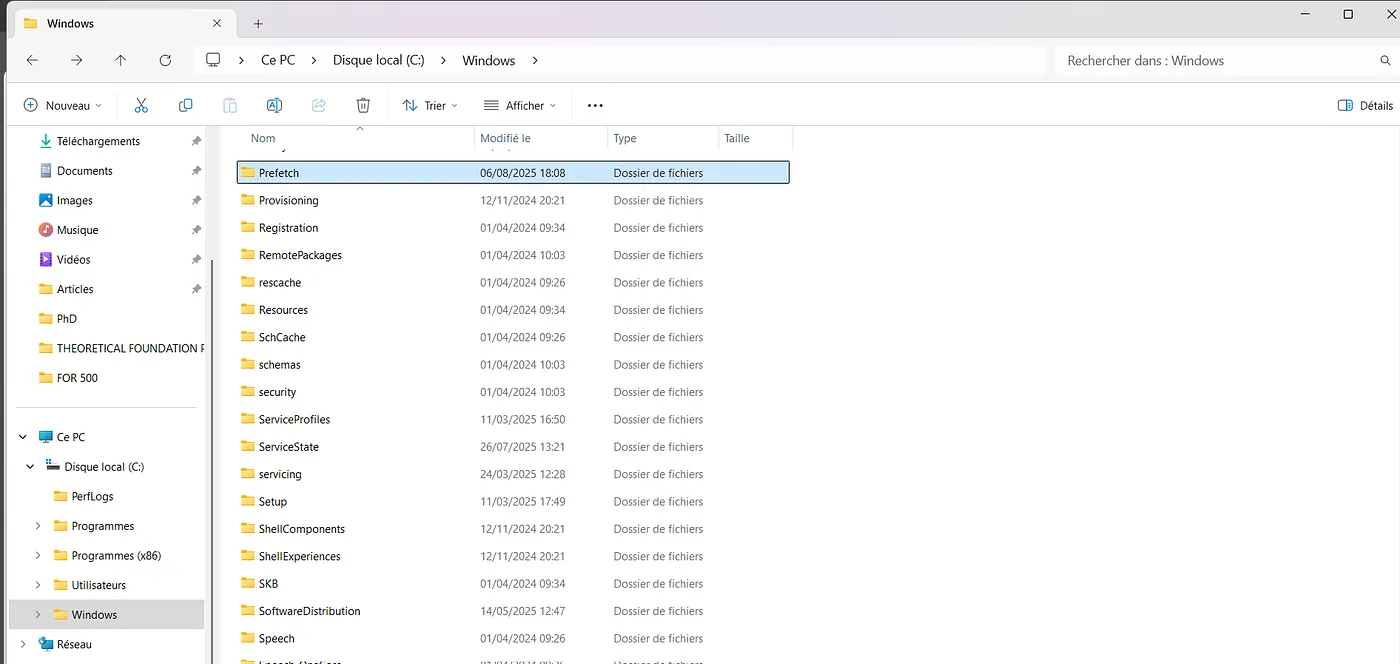

Location: Stored in C:\Windows\Prefetch

$C:\Windows\Prefetch$

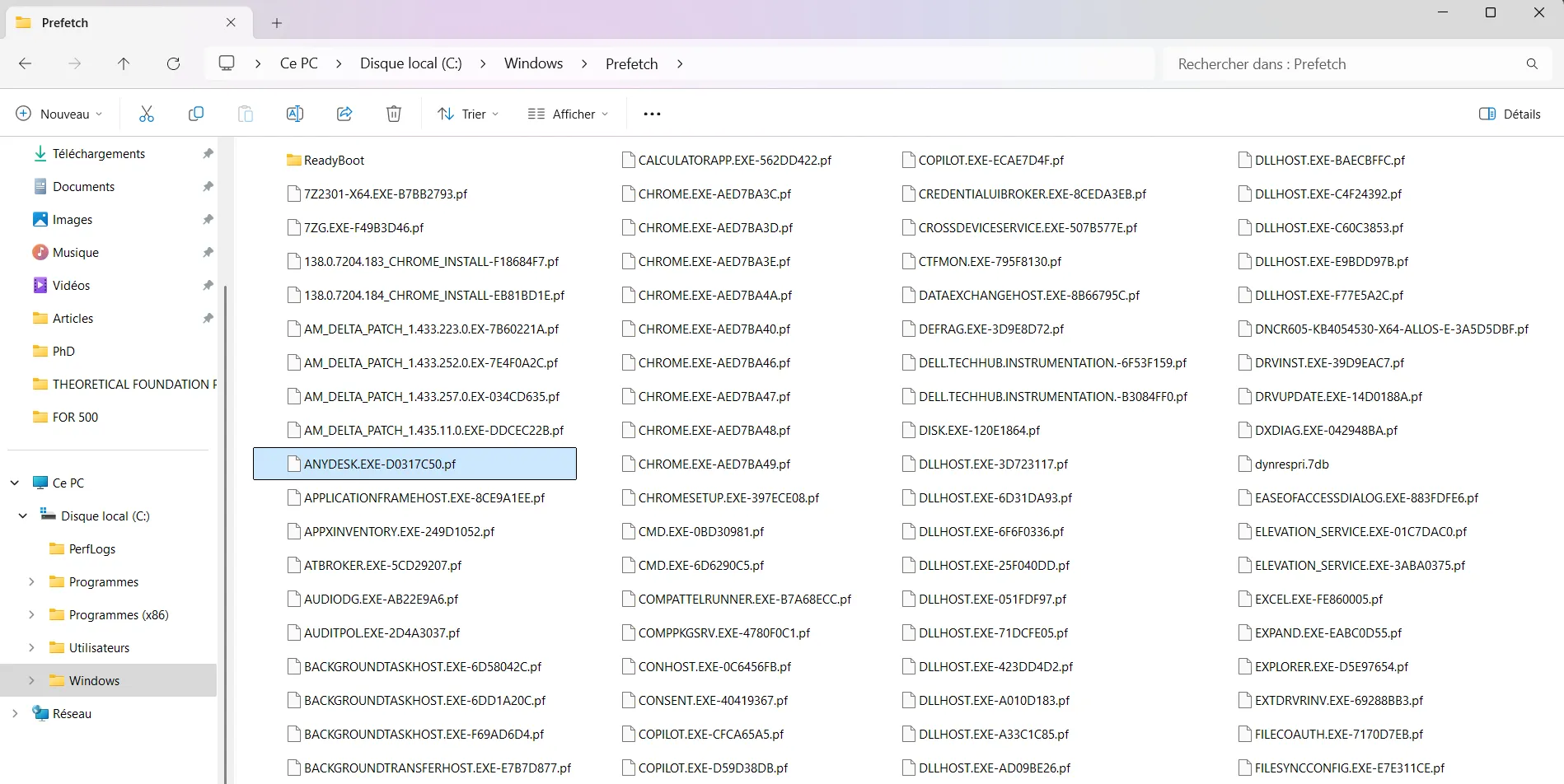

File Naming Convention:

[ApplicationName]-[8-character_hash_of_path].pf

Example: ANYDESK.EXE-D0317C50.pf

captionless image

The hash in the filename corresponds to a value calculated from the full device path of the executable using an iterative polynomial hash with specific constants that vary by Windows version.

For most executables, the hash is derived solely from this device path. However, for hosting applications like svchost.exe, the hash also includes the command line used to launch the application in these cases, the final hash is the sum of two parts: one computed from the executable’s device path, and another from the case-sensitive and space-sensitive command line.

Additionally, the assignment of volume numbers affects the device path. On Windows 7 and later, the presence of a 100MB system reserved partition means the C: drive is typically assigned HarddiskVolume2, not Volume1, which changes the input to the hash function and even small changes such as letter case , extra spaces, or different command-line formatting can result in a completely different hash. This makes the prefetch hash precise but tricky to reverse.

You can read more on that here :🔗 Prefetch Hash Calculator + a hash lookup table xp/vista/w7/w2k3/w2k8 | Hexacorn

Each prefetch file contains:#

Hash of the original path of the application
Application name
The number of times the application was run
Timestamps for the last eight times the application was run (Windows 8+)

Prefetch File Limits by OS Version#

Windows 7 and older : 128
Windows 8 and newer : 1,024

Why Are Prefetch Files Important in Digital Forensics?#

Prove Program Execution even if the original executable has been deleted.
Support Anti-Forensics Detection ;can reveal use of tools like CCleaner or other cleanup utilities used to erase evidence.
Aid Malware InvestigationsHelp identify when and how often malicious executables were run.
Enable Timeline Analysis by provide timestamps that help reconstruct a user’s or attacker’s activity over time.
Link Related Activity : Multiple prefetch files with the same path hash may indicate execution from the same (possibly deleted) directory, useful in identifying malware clusters.

How to Analyze Prefetch Files: Using PECmd.exe ( My favorite yet)#

One of the best tools for analyzing prefetch files is PECmd.exe, developed by Eric Zimmerman (free and open source).

🔗 https://ericzimmerman.github.io

Features of PECmd:

Parses all data from .pf files

Extracts:

Execution timestamps
Run count
File and directory interactions
Metadata (size, version)

Can analyze:

A single prefetch file
Entire Prefetch directory

Exports results to CSV, TLE (Timeline Explorer), or JSON

Example: Analyzing a Single Prefetch File#

Running PECmd against EVIL.EXE-12345678.pf gives output like:

1
Created on:       2022-08-18 19:19:18
2
Modified on:      2022-08-18 19:19:18
3
Last Accessed:    2022-08-18 19:19:18
4
Executable:       EVIL.EXE
5
Size:             102,400 bytes
6
Version:          1.0.0.0
7
Run Count:        1
8
Last Run:         2022-08-18 19:19:08   ← Actual execution time
9
Files Referenced:
10
  C:\Users\Bob\AppData\Temp\EVIL.EXE
11
  C:\Windows\System32\kernel32.dll
12
  E:\USBDrive\config.dat
13
Directories Referenced:
14
  C:\Users\Bob\AppData\Local\Temp
15
  E:\USBDrive

What are we seeing ?

The file ran once, from a user temp folder (a red flag!)
It accessed a USB drive (possible data exfiltration)

NOTE
Prefetch records 10 seconds of post-execution activity( sometimes less depending on the exucatable size but its what is mentioned in documentation ) including:

Files accessed

Registry keys opened

DLLs loaded

Because of this, the actual execution time is typically 10 seconds earlier than the file system timestamp (creation/modification) of the .pf file
Prefetch is disabled by default in Windows servers / enabled by default in Windows workstations
